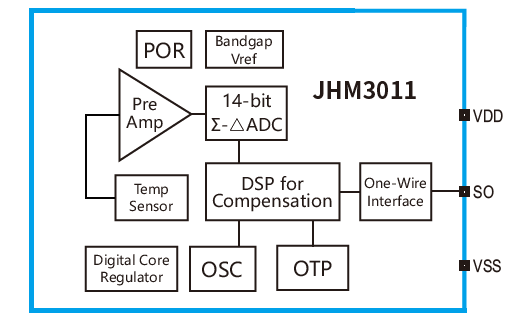

JHM3011 is a high-resolution digital temperature sensor IC that communicates via a single-wire serial digital data output with other devices. It consists of a temperature sensor, an ADC and a digital signal processing unit. It features high temperature accuracy (±0.5℃ between -40℃ to 150℃) and high resolution (down to 0.0625℃). It can operate within the supply voltage of 2.7V to 5.5V with a typical average current 0.5mA.

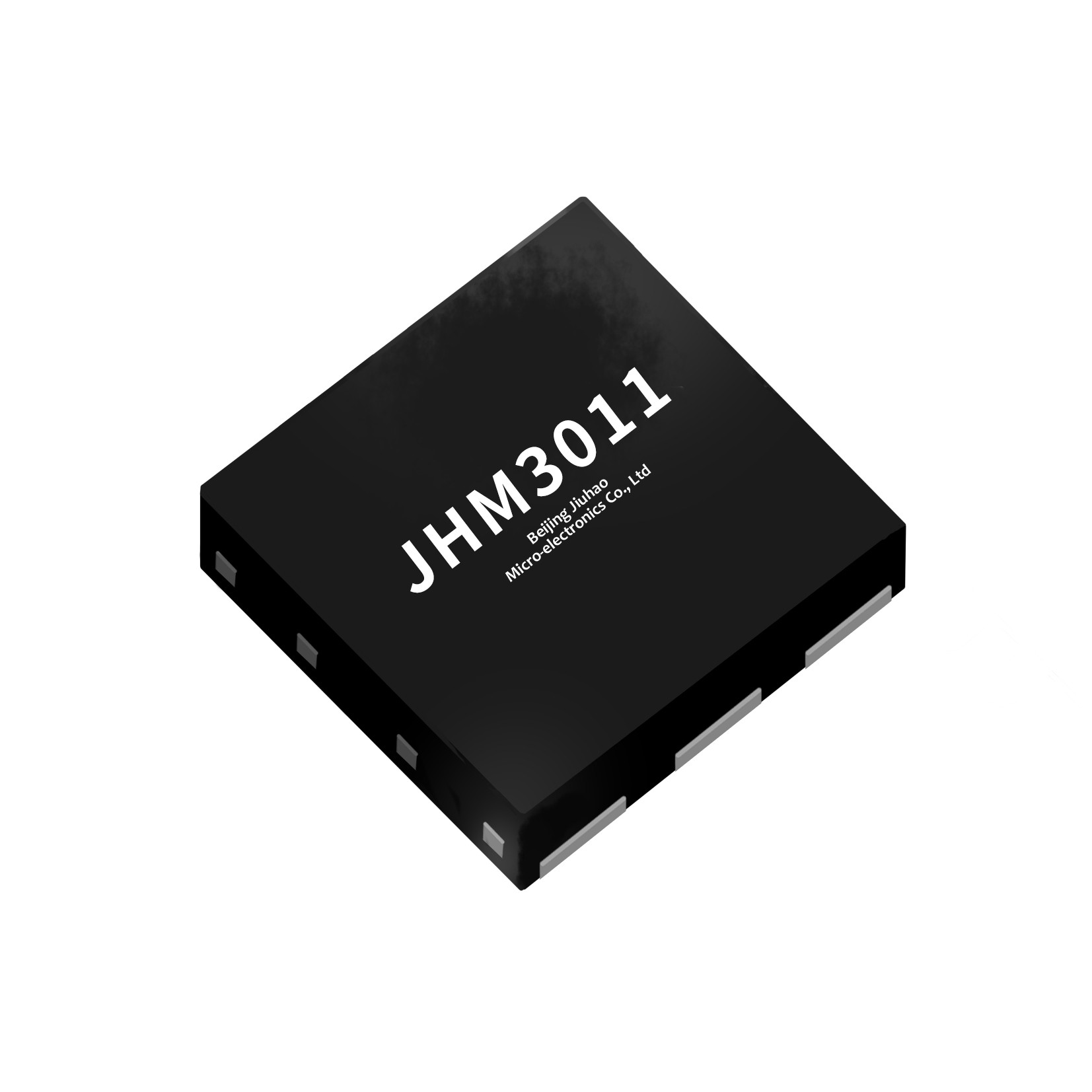

JHM3011 is an easy to integrate and use solution, featuring a factory calibrated sensor, integrated linearization, ideal for PT100 RTD replacement. The devices are available in 6-pin DFN footprint.

Features

• ±0.5℃(max) from 0℃to 50℃

• ±1.0℃(max) from -20℃to 85℃

• ±1.5℃(max) from -40℃ to 125℃

• ±2.0℃(max) from -40℃ to 150℃

• Operating temperature range:-40℃ to 150℃

• Low power consumption: continuous working Power supply voltage range: 2.7V to 5.5V

• 12 bit resolution: 0.0625 ℃ (1LSB)

• Single line interface, 32kHz; RTD substitute

Applications

• Electronic thermometer

• Wireless environment sensor

• Thermostat

• Automobile test equipment

• Wearable fitness and activity monitor

• Cold chain asset tracking

• Gas meters and calorimeters

• Temperature transmitter
